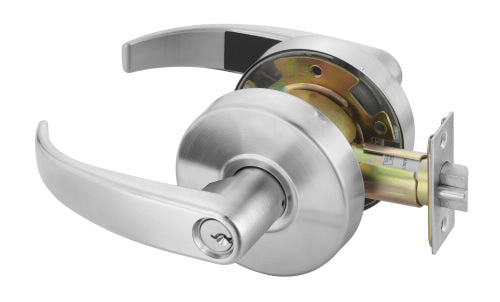

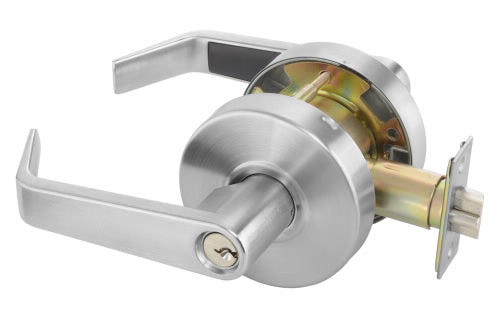

Yale PB4607LN Cylindrical Entry Lever Lockset, 2-3/4" Backset, Parakeyway, Grade 2
Yale® 4600(LN) cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price.
Specifications:
DoorThickness: Adjustable for doors 1-3/8" (35mm) to 1-3/4" (44mm).
Strike:ANSI 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip tocenter.
Backset:2-3/4" (70mm) standard
Throw:1/2"(13mm) throw latchbolt deadlocking
Handing:Non-handed
Installation:ANSI/BHMA A156.115(-W)
ANSI/BHMA:Certified ANSI/BHMA A156.2, Series 4000 Grade 2
Warranty:3 year
Applicationsand listings:
UL cUL listed for use on fire doors having a rating up to and including 3 hours
Meetsaccessibility guidelines for the ADA and the requirements of the UniformFederal Accessibility Standards and ANSI 117.1
4600LNcylindrical lever locks are supplied with optional through-bolts. Installationof through-bolts is at the discretion of the installer.
Features:
Entry Function: Pacific Beach lever
Parakeyway-6 pin cylinder
Key Different
