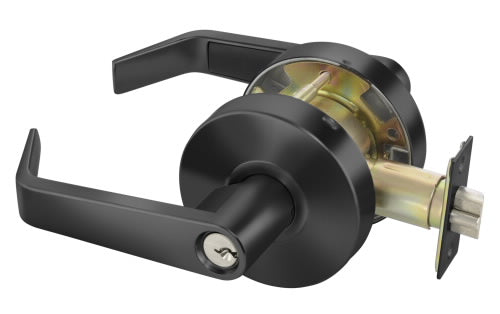

Yale MO4605LN Cylindrical Storeroom Lever Lockset, 2-3/4" Backset, Parakeyway, Grade 2
Free Shipping On Orders over $150
Standard shipping for this item is $15 for orders under $150
Yale® 4600(LN) cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price.
Door Thickness: Adjustable for doors 1-3/8" (35mm) to 1-3/4" (44mm).
Strike: ANSI 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center.
Backset: 2-3/4" (70mm) standard
Throw:1/2" (13mm) throw latchbolt deadlocking
Installation: ANSI/BHMA A156.115(-W)
ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000 Grade 2
Warranty: 3 year
Applications and listings:
UL cUL listed for use on fire doors having a rating up to and including 3 hours
Meets accessibility guidelines for the ADA and the requirements of the Uniform Federal Accessibility Standards and ANSI 117.1
4600LN cylindrical lever locks are supplied with optional through-bolts. Installation of through-bolts is at the discretion of the installer.
Storeroom Function: Monroe lever
Parakeyway-6 pin cylinder
