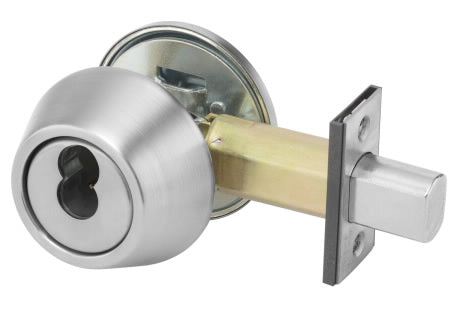

Yale D222 Cylinder X Cylinder Deadbolt, Parakeyway, Grade 2
Free Shipping On Orders over $150Standard shipping for this item is $15 for orders under $150
Yale® D series deadbolts are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required.The D200 series is certified to ANSI/BHMA Grade 2 standards.
Deadbolt operated by key outside, key inside
Parakeyway- 6 pin cylinder
Door thickness: Standard for 1-3/8" (35mm) to 1-3/4" (44mm).
Deadbolt: 1" (25mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
Front: 2-1/4" x 1" (57mm x 25mm) front and 1-1/8" (29mm) latch front filler supplied standard.
Strikes: 2-3/4" x 1-1/8" (70mm x 29mm) metal and wood door strikes with strike reinforcement supplied standard.
Installation: Can be installed on doors prepared to ANSI/BHMA A156.115 specifications using a simple bored-hole installation for square or beveled doors, opening in or out.
Handing: Functions are non-handed and easily field reversible.
Applications and listings:
D series deadbolts, when used in conjunction with the primary latching device, are UL - cUL listed for use with Classified steel covered composite or hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.
Can be installed on doors prepared to ANSI/BHMA A156.115 specifications using a simple bored-hole installation for square or beveled doors, opening in or out.
The D series deadbolts carry a one year mechanical warranty.
