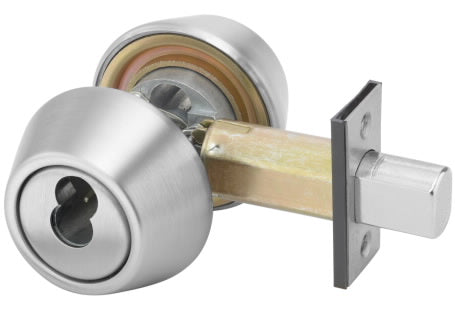

Yale D122 Cylinder X Cylinder Deadbolt, Parakeyway, Grade 1

by Yale
SKU Yale D122 X 626
Original price $98.00 - Original price $98.00
Original price
$98.00
$98.00 - $98.00
Current price $98.00

Free Shipping On Orders over $150

Standard shipping for this item is $15 for orders under $150
Color: 626-Satin Chrome

Yale® D series deadbolts are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required. The D100 series is certified to ANSI/BHMA Grade 1 standards.

Features:

Deadbolt operated by key outside, key inside.

Parakeyway- 6 pin cylinder

Key Different

Specifications:

Backset:2-3/4"

Door thickness: Standard for 1-3/8" (35mm) to 1-3/4" (44mm).

Deadbolt: 1" (25mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.

Front: 2-1/4" x 1" (57mm x 25mm) front and 1-1/8" (29mm) latch front filler supplied standard.

Strikes: 2-3/4" x 1-1/8" (70mm x 29mm) metal and wood door strikes with strike reinforcement supplied standard.

Installation: Can be installed on doors prepared to ANSI/BHMA A156.115 specifications using a simple bored-hole installation for square or beveled doors, opening in or out.

Handing: Functions are non-handed and easily field reversible.

Applications and listings:

D series deadbolts, when used in conjunction with the primary latching device, are UL - cUL listed for use with Classified steel covered composite or hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.

Can be installed on doors prepared to ANSI/BHMA A156.115 specifications using a simple bored-hole installation for square or beveled doors, opening in or out.

The D series deadbolts carry a one year mechanical warranty.
