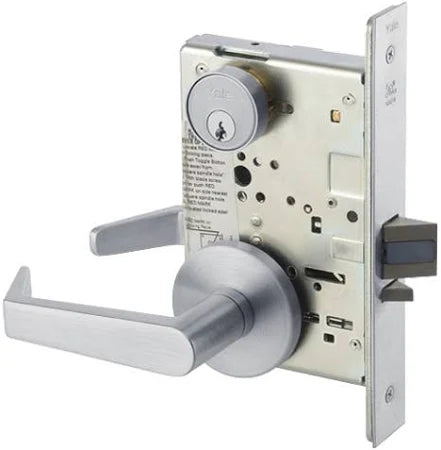

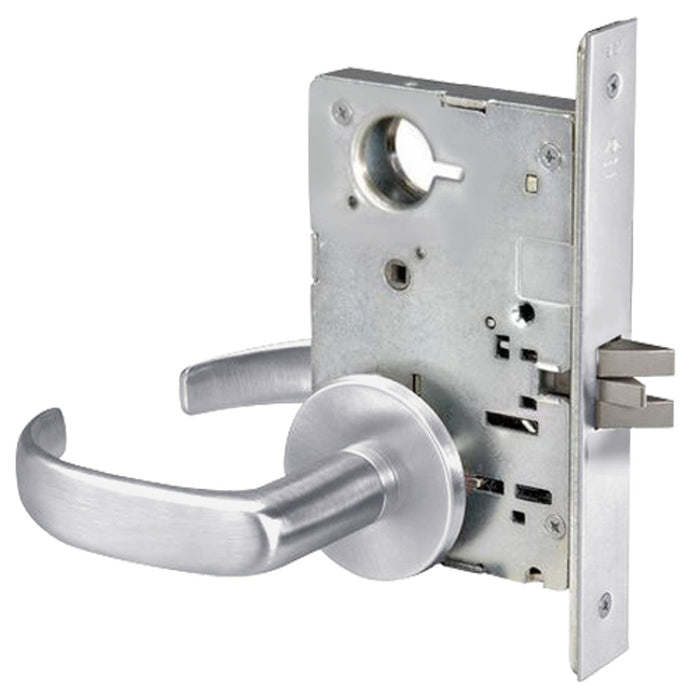

Yale AUCN8808Fl X 626 Mortise Classroom Levered Lockset, Satin Chrome
The 8800 provides steadfast dependability and is the choice of architects and owners who require superior performance in even the toughest applications. As a longtime industry standard of quality, the Yale® steel case mortise lock continues to provide the highest level of security. This mortise lock brings versatility as well as uncompromising strength and durability. With quick lever handing and a tamper-proof, quick-reversible latchbolt, lockset handing takes only seconds.
Door Thickness: Adjustable for doors 1-3/4" to 3-1/4" thick with standard trims
Strike: 1-1/4" Non-handed curved lip standard
Less Cylinder:cylinder not included. Yale mortise cylinder 2153 and 2553 could be purchased separately
Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
Front: Freefloating to adjust from flat to the standard bevel of 1/8" in 2".
Reversibility: Locksets are right handed and offer quick field reversibility
Installation: ANSI/BHMA A156.115(-W) andA156.115
ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000 Grade 1
Warranty: 10 year
UL cUL fire rated up to 3 hours
Meets accessibility guidelines for the ADA and the requirements of the Uniform Federal Accessibility Standards and ANSI 117.1
