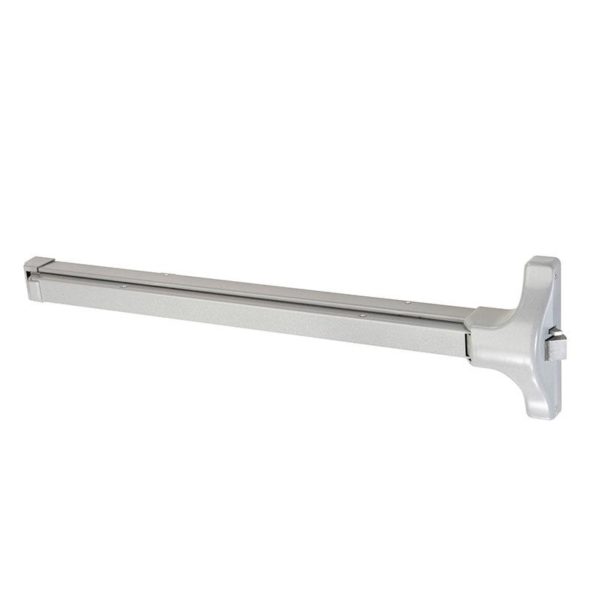

Accentra 2100F-48 X 630 48" Rim Exit Device, Satin Stainless Steel

SKU Yale 2100F-48 x 630
Original price $496.59 - Original price $496.59
Original price
$496.59
$496.59 - $496.59
Current price $496.59

It's no secret that the 2100 series flatbar exit device has a reputation as the right choice for meeting the rigors of demanding industry segments.

The 2100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. The 2100(F) can be paired with a wide variety of trims to meet many applications.

The quality and certified ANSI/BHMA A156.3 Grade 1 performance of the 2100 series are unmatched in the security industry. So it's no wonder that architects and specifiers request it for their toughest applications.

Fire Listings:

2100F series exit devices are UL-cUL Listed for use on fire doors having a rating up to and including 3-hours unless otherwise noted.

Certification/Compliance:
UL/cUL Listed: FVSR/FVSR7 - Panic hardware GXHX/GXHX7 - Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3 hr.) ZHEM - Latching hardware ZHLA - Windstorm rated assemblies

Features
Designed for wide stile doors Non-handed for easy installation
Steel interlock "E" bracket maintains door-to-mullion relationship in fire-labeled devices
Deadlocking pullman latchbolt positively engages roller strike

Specifications:
Door Opening Width: 36" - 42" (91cm - 107cm)
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed
Latchbolt: 3/4" (19mm) deadlocking stainless steel pullman-type
Strike: 757F
Fasteners: Machine screws and wood door fasteners standard for panic hardware.
Trims that can be used: 121NL cylinder only, 210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F series escutcheon trim, 630F series pull/thumbpiece trim.
Sex nuts and bolts supplied standard for fire exit hardware.

Applications:
Single swing doors Pairs of doors (mullion required) Metal, wood or composite door materials

Warranty:
The 2100 series exit devices carry a three-year warranty.
