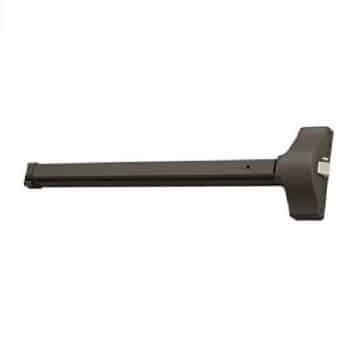

Yale 1800F-36 36" Fire Rated Rim Exit Device
Yale® 1800 series exit devices are the ideal choice for economy commercial applications where consistent quality, ease of use and installation are required. 1800F rim device is certified ANSI/BHMA A156.3, Grade 1 and its performance, construction and versatility make it perfect for a variety of facilities.
The 1800F is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. The 1800F can be paired with a wide variety of trims to meet many applications.
Ansi/bhma:
Certified ANSI/BHMA A156.3, Grade 1.
Fire Listings:
1800 series exit devices are UL-cUL Listed for use on fire doors having a rating up to and including 3-hours.
Features
Designed for wide stile doors Non-handed for easy installation Steel interlock "E" bracket maintains door-to-mullion relationship in fire-labeled devices
Applications
Single swing doors Pairs of doors (mullion required) Metal, wood or composite door materials
Specifications
Door Opening Width: 30" - 36" (76cm - 91cm)
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed
Strike: 757F
Trims: 210F series utility trim, 420F series escutcheon trim, 440F series rose trim
Warranty: 1-year limited
